Misc ABAP Classes

• Misc ABAP Classes
  • Excursion: Available Classes in ABAP Cloud
  • Creating UUIDs
  • RAP
  • Transactional Consistency
  • Numbers and Calculations
  • String Processing
  • Time and Date
  • Runtime Type Services (RTTS)
  • Assignments
  • Dynamic Programming
  • Context Information
  • XML/JSON
  • ABAP Repository Information
  • Call Stack
  • Sending Emails
  • Tenant Information
  • Exception Classes
  • Parallel Processing
  • Application Log

This ABAP cheat sheet contains a selection of available ABAP classes, serving as a quick introduction, along with code snippets to explore the functionality in action.

💡 Note

• The cheat sheet is not a comprehensive overview, and the code snippets do not claim to be comprehensive as far as options, methods, or parameters are concerned. It is intended to give you a rough overview, for you to get an idea. It is an invitation to a more in-depth exploration.
• For more information and where available, refer to the class documentation (for example, choose F2 when the cursor is on the class name in ADT), the ABAP Keyword Documentation, and the SAP Help Portal documentation.
• In the cheat sheet, the focus is on a selected set of classes that are available in ABAP Cloud.

Excursion: Available Classes in ABAP Cloud

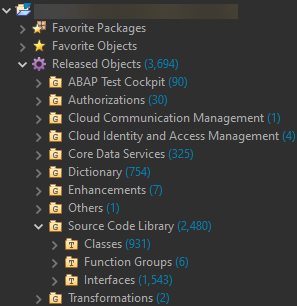

If available to you, you have accessed an SAP BTP ABAP Environment using the ABAP development tools for Eclipse (ADT). Access to SAP-provided repository objects is restricted to objects that have been released for ABAP for Cloud Development (released APIs). You can find the released repository objects in the Project Explorer view in ADT under Released Objects. The classes are located in the Source Code Library folder:

You can also programmatically get the released obects. You can use specific XCO classes or a CDS view, as shown in the example code snippet below.

SELECT ReleasedObjectType, ReleasedObjectName, ReleaseState
  FROM i_apisforclouddevelopment
  WHERE releasestate = 'RELEASED'
  AND ReleasedObjectType = 'CLAS'
  ORDER BY ReleasedObjectName
  INTO TABLE @DATA(released_classes).

Creating UUIDs

Class	Details/Code Snippet
CL_SYSTEM_UUID	Creating and and converting system UUIDs with various algorithms "Generating UUIDs in binary format (16 bytes) TRY. DATA(uuid) = cl_system_uuid=>create_uuid_x16_static( ) . CATCH cx_uuid_error. ENDTRY. "e.g. B2B012691AC31EDEADA0A495A7130961

⬆️ back to top

RAP

Class	Details/Code Snippet
CL_ABAP_BEHV_AUX	A utility class for retrieving information about RAP handler implementations, such as the current context of RAP handler/saver methods, the handler kind, and the current RAP transactional phase (e.g., RAP interaction phase. "Getting the current context of RAP handler implementations; "storing the information (true/false) in a variable declared inline cl_abap_behv_aux=>get_current_context( IMPORTING from_projection = FINAL(fr_proj) from_interface = FINAL(fr_int) in_local_mode = FINAL(loc_mode) draft_activate = FINAL(dr_act) for_permissions = FINAL(for_perm) privileged = FINAL(priv) ). "Getting the root entity name and handler kind "For the latter, you can check the fixed values of abp_behv_kind (e.g., 'R' stands for read) DATA ent TYPE abp_root_entity_name. FINAL(handler_kind) = cl_abap_behv_aux=>get_current_handler_kind( IMPORTING root_entity = ent ). "Getting information about the current transactional phase FINAL(phase) = cl_abap_behv_aux=>get_current_phase( ). "e.g. INTERACTION or EARLY_SAVE
CL_ABAP_BEHAVIOR_HANDLER	Used for RAP handler classes that inherit from class CL_ABAP_BEHAVIOR_HANDLER. "Skeleton of a RAP handler class declaration part in a CCIMP include CLASS lcl_handler DEFINITION INHERITING FROM cl_abap_behavior_handler. PRIVATE SECTION. ... "Here go RAP handler method declarations ENDCLASS. ...
CL_ABAP_BEHAVIOR_SAVER	Used as base class from which a RAP saver class in an ABAP behavior pool (ABP) inherits. The RAP saver class must be defined in the CCIMP include of an ABP. "Skeleton of a RAP saver class declaration part in a CCIMP include CLASS lsc_bdef DEFINITION INHERITING FROM cl_abap_behavior_saver. PROTECTED SECTION. METHODS finalize REDEFINITION. METHODS check_before_save REDEFINITION. METHODS save REDEFINITION. METHODS cleanup REDEFINITION. METHODS cleanup_finalize REDEFINITION. ENDCLASS. ...
CL_ABAP_BEHAVIOR_SAVER_FAILED	Same as CL_ABAP_BEHAVIOR_SAVER. It is used as base class from which a RAP saver class in an ABAP behavior pool (ABP) inherits. Normally, the basic rule is that failures must not occur in the RAP late save phase, but must be detected in the RAP early save phase in order for the save to be successful. The base class CL_ABAP_BEHAVIOR_SAVER_FAILED can be used in exceptional cases where the basic rule cannot be met. For more information, see the ABAP Keyword Documentation. "Skeleton of a RAP saver class declaration part in a CCIMP include CLASS lsc_bdef DEFINITION INHERITING FROM cl_abap_behavior_saver_failed. PROTECTED SECTION. ... METHODS save REDEFINITION. "Unlike in CL_ABAP_BEHAVIOR_SAVER, the RAP response parameters failed and reported are included. ... ENDCLASS. ...
CL_ABAP_BEHAVIOR_EVENT_HANDLER	It is used as base class from which a RAP event handler class in its CCIMP include inherits. Its purpose is to locally consume RAP business events. More information: ABAP for RAP Business Events. "Skeleton of a RAP event handler class declaration part in a CCIMP include "The assumption is that there are the events 'created', 'updated', and "'deleted' specified in the BDEF. CLASS lhe_event DEFINITION INHERITING FROM cl_abap_behavior_event_handler. PRIVATE SECTION. METHODS on_updated FOR ENTITY EVENT updated FOR some_bdef~updated. METHODS on_deleted FOR ENTITY EVENT deleted FOR some_bdef~deleted. METHODS on_created FOR ENTITY EVENT created FOR some_bdef~created. ENDCLASS. ...

⬆️ back to top

Transactional Consistency

Class

Details/Code Snippet

CL_ABAP_TX

Explicitly setting transactional phases (the modify and save transactional phase) to enable transactional consistency checks with the controlled SAP LUW (which is an extension of the SAP LUW concept) The controlled SAP LUW is automatically and implicitly supported by newer ABAP concepts such as RAP, i.e. the transactional phases are implicitly active when RAP handler methods are called. Operations that are not allowed in a transactional phase are detected, resulting in a runtime error in certain contexts (or the violations are logged). For example, database modifications are only allowed in the save transactional phase because the data being processed in the modify phase may be inconsistent. Therefore, a database modification in the modify phase can disrupt the SAP LUW. For more information, refer to the chapter Controlled SAP LUW. See the restrictions in the ABAP Keyword Documentation: ABAP for Cloud Development / Standard ABAP. ... "Activating the modify transactional phase cl_abap_tx=>modify( ). "The following database modification statement is not allowed in the "modify transactional phase. In certain contexts, e.g. in ABAP Cloud, "the runtime error BEHAVIOR_ILLEGAL_STMT_IN_CALL occurs. MODIFY zdemo_abap_carr FROM TABLE @( VALUE #( ( carrid = 'XY' carrname = 'XY Airlines' currcode = 'EUR' url = 'some_url' ) ) ). ... "Activating the save transactional phase cl_abap_tx=>save( ). "In this phase, database modifications are allowed. MODIFY zdemo_abap_carr FROM TABLE @( VALUE #( ( carrid = 'XY' carrname = 'XY Airlines' currcode = 'EUR' url = 'some_url' ) ) ). ...

⬆️ back to top

Numbers and Calculations

Class	Details/Code Snippet
CL_ABAP_MATH	For operations with (decimal) floating point numbers and for providing constants for minimum and maximum values. "Constants for the minimum and maximum values of built-in numeric types "Example: Type i DATA(min_int4) = cl_abap_math=>min_int4. "-2147483648 DATA(max_int4) = cl_abap_math=>max_int4. "2147483647 "Rounding binary floating point number to 15 places using commercial rounding DATA flpnum TYPE f VALUE '1.005'. DATA(rd) = cl_abap_math=>round_f_to_15_decs( flpnum ). "1.005000000000001E0 DATA(str2dcm) = |{ flpnum DECIMALS = 2 }|. "1.00 DATA(str2dcm_rd) = |{ cl_abap_math=>round_f_to_15_decs( flpnum ) DECIMALS = 2 }|. "1.01 "Properties of decimal floating point numbers "Example: 98.765; an integer with fixed precision, i.e. a given length (the length of 98765), "which is scaled by dividing through a power of 10 (10 powered by n, representing "the number of decimal places; in the example, the scaling is the negative exponent) DATA(decf) = CONV decfloat34( '98.765' ). DATA(scale) = cl_abap_math=>get_scale( decf ). "3 DATA(precision) = cl_abap_math=>get_number_of_digits( decf ). "5
CL_ABAP_DECFLOAT	For handling decimal floating point numbers. "Converting currency amounts to decimal floating point numbers using a "a currency key. The reverse is also possible. DATA(dec) = CONV decfloat34( '12340' "'123.456' ). DATA pdec TYPE p LENGTH 9 DECIMALS 2. cl_abap_decfloat=>convert_decfloat_to_curr( EXPORTING amount_decfloat = dec cuky = 'EUR' IMPORTING amount_curr = pdec ) . "12340.0 "123.46 "Converting strings to decimal floating point numbers "The character string is converted to a value of type decfloat34, "which is passed back in VALUE. DATA dcfl34 TYPE decfloat34. DATA return_code TYPE i. DATA str TYPE string VALUE `1234.8652`. TRY. cl_abap_decfloat=>read_decfloat34( EXPORTING string = str IMPORTING value = dcfl34 rc = return_code ). CATCH cx_sy_conversion_overflow cx_abap_decfloat_invalid_char cx_abap_decfloat_parse_err. ENDTRY.
CL_ABAP_BIGINT	For calculations with integers of any size (e.g. to avoid the risk of an arithmetic overflow). Find more information in this blog, and check out the different methods available. "Creating an arbitrary precision integer from a variable of type i "and calculating the power; converting the result to string DATA(pow1) = cl_abap_bigint=>factory_from_int4( 10 )->pow( 10 )->to_string( ). "Comparison with integer value (the maximum value of type i; see the class above) DATA(compare_i) = cl_abap_bigint=>factory_from_int4( 10 )->pow( 10 )->compare_int4( cl_abap_math=>max_int4 ). "LARGER "10000000000 (result) "2147483647 (maximum value for type i) "Comparison with the ipow function (here, an exception is raised) TRY. DATA(pow2) = ipow( base = 10 exp = 10 ). CATCH cx_sy_arithmetic_overflow. ENDTRY.
CL_ABAP_RATIONAL	For calculations with rational numbers without precision loss and rounding errors. "Creating a rational number from a string DATA(rat_num) = cl_abap_rational=>factory_from_string( EXPORTING iv_value = `-1/3` ). "Performing an addition and converting the result to string DATA(addition_res) = rat_num->add( cl_abap_rational=>factory_from_string( EXPORTING iv_value = `3/2` ) )->to_string( ). "7/6
CL_ABAP_RANDOM*	For generating arbitrary numbers for different numeric types: CL_ABAP_RANDOM_INT (type i), CL_ABAP_RANDOM_INT8 (int8), CL_ABAP_RANDOM_FLOAT (f), CL_ABAP_RANDOM_PACKED (p), CL_ABAP_RANDOM_PACKED_DEC1 - CL_ABAP_RANDOM_PACKED_DEC14 (p with 1 to 14 decimal places), CL_ABAP_RANDOM_DECFLOAT16 (decfloat16), CL_ABAP_RANDOM_DECFLOAT34 (decfloat34) "Getting multiple random integers that are to be stored in an "internal table of type i TYPES int_tab_type TYPE TABLE OF i WITH EMPTY KEY. DATA int_tab TYPE int_tab_type. "The optional parameters are explicitly specified in the example; "'seed' represents the initial starting number, you can use "'cl_abap_random=>seed( )' to specify an arbitrary start value DATA(random_num1) = cl_abap_random_int=>create( seed = cl_abap_random=>seed( ) min = 1 max = 100 ). DO 3 TIMES. APPEND random_num1->get_next( ) TO int_tab. ENDDO. "Getting a random integer in one go using method chaining DATA(random_num2) = cl_abap_random_int=>create( seed = cl_abap_random=>seed( ) min = 100 max = 1000 )->get_next( ).

⬆️ back to top

String Processing

Class	Details/Code Snippet
CL_ABAP_GZIP*	For (de)compressing character strings and byte strings using GZIP: CL_ABAP_GZIP, CL_ABAP_GZIP_BINARY_STREAM, CL_ABAP_GZIP_TEXT_STREAM, CL_ABAP_UNGZIP_BINARY_STREAM, CL_ABAP_UNGZIP_TEXT_STREAM "------- (De)compressing binary data ------- DATA(str) = `This is a data object of type string. It should be converted to xstring, compressed and decompressed.`. DATA(xstr) = cl_abap_conv_codepage=>create_out( )->convert( str ). DATA xstr_comp TYPE xstring. "Compressing binary data TRY. cl_abap_gzip=>compress_binary( EXPORTING raw_in = xstr IMPORTING gzip_out = xstr_comp ). CATCH cx_parameter_invalid_range cx_sy_buffer_overflow cx_sy_compression_error. ENDTRY. "Comparing the length of the data objects DATA(len_xstr) = xstrlen( xstr ). "101 DATA(len_xstr_comp) = xstrlen( xstr_comp ). "81 "Decompressing binary data DATA xstr_decomp TYPE xstring. TRY. cl_abap_gzip=>decompress_binary( EXPORTING gzip_in = xstr_comp IMPORTING raw_out = xstr_decomp ). CATCH cx_parameter_invalid_range cx_sy_buffer_overflow cx_sy_compression_error. ENDTRY. DATA(len_xstr_decomp) = xstrlen( xstr_decomp ). "101 DATA(conv_str) = cl_abap_conv_codepage=>create_in( )->convert( xstr_decomp ). DATA(is_equal) = COND #( WHEN len_xstr = len_xstr_decomp AND str = conv_str THEN 'X' ELSE '' ). "Result: X "------- (De)compressing character strings ------- DATA zipped TYPE xstring. TRY. cl_abap_gzip=>compress_text( EXPORTING text_in = `Hello world` IMPORTING gzip_out = zipped ). CATCH cx_parameter_invalid_range cx_sy_buffer_overflow cx_sy_conversion_codepage cx_sy_compression_error. ENDTRY. DATA txt TYPE string. TRY. cl_abap_gzip=>decompress_text( EXPORTING gzip_in = zipped IMPORTING text_out = txt ). CATCH cx_parameter_invalid_range cx_sy_buffer_overflow cx_sy_conversion_codepage cx_sy_compression_error. ENDTRY. ASSERT txt = `Hello world`.
CL_ABAP_CHAR_UTILITIES	Provides utilities for string processing, such as attributes that represent new lines and horizontal tabs. DATA(tabbed) = `#` && cl_abap_char_utilities=>horizontal_tab && `#`. "The following attributes can be replaced by a representation of "the control characters in a string template. ASSERT cl_abap_char_utilities=>newline = |\n|. ASSERT cl_abap_char_utilities=>horizontal_tab = |\t|. ASSERT cl_abap_char_utilities=>cr_lf = |\r\n|.
CL_ABAP_STRING_UTILITIES	For processing text strings, such as handling trailing blanks in character strings (i.e. data objects of type string). DATA(string) = `ABAP `. "Removing trailing blanks cl_abap_string_utilities=>del_trailing_blanks( CHANGING str = string ). "`ABAP` "Preserving trailing blanks when assigning text fields to data objects of "type string DATA(chars) = 'ABAP '. cl_abap_string_utilities=>c2str_preserving_blanks( EXPORTING source = chars IMPORTING dest = DATA(str_w_blanks) ). "`ABAP ` DATA(str_no_blanks) = CONV string( chars ). "`ABAP`
CL_ABAP_CONV_CODEPAGE	For handling code pages, converting strings to the binary representation of different code pages and vice versa. DATA(hi) = `Hello world`. "string -> xstring "Note: UTF-8 is used by default. Here, it is specified explicitly. TRY. DATA(conv_xstring) = cl_abap_conv_codepage=>create_out( codepage = `UTF-8` )->convert( hi ). CATCH cx_sy_conversion_codepage. ENDTRY. "48656C6C6F20776F726C64 "xstring -> string DATA(conv_string) = cl_abap_conv_codepage=>create_in( )->convert( conv_xstring ). "Hello world "As an alternative, you can use methods of the XCO library. More methods are available "in this context. Check the options when choosing CTRL + Space after '->' "string -> xstring DATA(conv_xstring_xco) = xco_cp=>string( hi )->as_xstring( xco_cp_character=>code_page->utf_8 )->value. "xstring -> string DATA(conv_string_xco) = xco_cp=>xstring( conv_xstring_xco )->as_string( xco_cp_character=>code_page->utf_8 )->value.
CL_ABAP_REGEX CL_ABAP_MATCHER	For an object-oriented representation of regular expressions. For example, the CREATE_PCRE method creates instances of regular expressions with PCRE syntax. The instances can be used, for example, with the CL_ABAP_MATCHER class, which applies the regular expressions. A variety of methods and parameters can be specified to accomplish various things and to further specify the handling of the regular expression. DATA(str) = `a1 # B2 ? cd . E3`. "Creating a regex instance for PCRE regular expressions "In the example, regex_inst has the type ref to cl_abap_regex. DATA(regex_inst) = cl_abap_regex=>create_pcre( pattern = `\D\d` "Any-non digit followed by a digit ignore_case = abap_true ). "Creating an instance of CL_ABAP_MATCHER using the method CREATE_MATCHER of the class CL_ABAP_REGEX "You can also specify internal tables with the 'table' parameter and more. DATA(matcher) = regex_inst->create_matcher( text = str ). "Finding all results using the 'find_all' method "In the example, result has the type match_result_tab containing the findings. DATA(result) = matcher->find_all( ). "Using method chaining DATA(res) = cl_abap_regex=>create_pcre( pattern = `\s\w` "Any blank followed by any word character ignore_case = abap_true )->create_matcher( text = str )->find_all( ).

⬆️ back to top

Time and Date

Class	Details/Code Snippet
CL_ABAP_UTCLONG	For handling time stamps in time stamp fields (data objects with type utclong). "utclong_current: Using the built-in function to create a UTC time stamp DATA(low_timestamp) = utclong_current( ). "utclong_add: Using the built-in function to create a UTC time stamp and "adding time values DATA(high_timestamp) = utclong_add( val = low_timestamp days = 1 hours = 2 minutes = 3 seconds = 4 ). "diff: Calculating time differences "In the example, the returned values correspond to the ones added above. cl_abap_utclong=>diff( EXPORTING high = high_timestamp low = low_timestamp IMPORTING days = DATA(days) hours = DATA(hours) minutes = DATA(minutes) seconds = DATA(seconds) ). "read: Reading a time stamp from a string DATA(ts) = |{ utclong_current( ) TIMESTAMP = ENVIRONMENT TIMEZONE = 'UTC' }|. TRY. cl_abap_utclong=>read( EXPORTING string = ts timezone = 'UTC' IMPORTING value = DATA(utc_ts) ). CATCH cx_abap_utclong_invalid. ENDTRY. "e.g. 2024-01-01T13:01:54.546134Z
CL_ABAP_TSTMP	For calculating and converting time stamps in packed numbers (types timestamp and timestampl) "Creating a time stamp of type timestamp (the inline creation creates "a data object with that type by default) GET TIME STAMP FIELD DATA(ts1). "e.g. 20240101131220 "Calculations for time stamps in packed numbers "Adding 1 hour DATA(ts2) = cl_abap_tstmp=>add( tstmp = ts1 secs = 3600 ). "e.g. 20240101141220.0000000 "Subtracting 2 hours DATA(ts3) = cl_abap_tstmp=>subtractsecs( tstmp = ts1 secs = 7200 ). "e.g. 20240101111220.0000000 "Type timestampl DATA tsl1 TYPE timestampl. GET TIME STAMP FIELD tsl1. "e.g. 20240101131701.3309040 "Converting type timestampl to timestamp DATA(ts4) = cl_abap_tstmp=>move_to_short( tsl1 ). "e.g. 20240101131701 "Converting types timestamp/timestampl to UTCLONG DATA(ts2utcl) = cl_abap_tstmp=>tstmp2utclong( tsl1 ). "e.g. 2024-01-01 13:19:23.8622560 "Converting type utclong to timestamp DATA(utcl2ts) = cl_abap_tstmp=>utclong2tstmp_short( ts2utcl ). "e.g. 20240101132231 "Converting type utclong to timestampl DATA(utcl2tsl) = cl_abap_tstmp=>utclong2tstmp( ts2utcl ). "e.g. 20240101132231.0667200
XCO_CP_TIME	Class of the XCO time library that provides abstractions for getting and working with date and time information. Find more details here. "Creating a time stamp "As a result (which is also true for other results below), "you get a handler with which you can get further information "(check the options following '->'). DATA(m_moment) = xco_cp_time=>moment( iv_year = '2024' iv_month = '01' iv_day = '01' iv_hour = '12' iv_minute = '34' iv_second = '55' ). "Getting the created time stamp as a string "20240101123455 DATA(m2_moment_string) = m_moment->as( xco_cp_time=>format->abap )->value. "... and with other formats applied. "20240101T123455 DATA(m3_moment_format_a) = m_moment->as( xco_cp_time=>format->iso_8601_basic )->value. "2024-01-01T12:34:55 DATA(m4_moment_format_b) = m_moment->as( xco_cp_time=>format->iso_8601_extended )->value. "Getting user time zone "e.g. UTC DATA(m1_user_time_zone) = xco_cp_time=>time_zone->user->value. "Getting the current moment in the time zone of the current user "e.g. 2024-01-01T08:54:39 DATA(m5_cur_moment4user) = xco_cp=>sy->moment( xco_cp_time=>time_zone->user )->as( xco_cp_time=>format->iso_8601_extended )->value. "Current moment in UTC "e.g. 2024-01-01T08:54:39 (result is the same as above in the case of the cheat sheet example) DATA(m6_cur_moment_utc) = xco_cp=>sy->moment( xco_cp_time=>time_zone->utc )->as( xco_cp_time=>format->iso_8601_extended )->value. "Current UNIX timestamp "e.g. 1703863291 DATA(m7_unix_tstmp) = xco_cp=>sy->unix_timestamp( )->value. "For the time stamp, you can also use the TIME method "e.g. 10:27:59 DATA(m8_time) = xco_cp=>sy->time( xco_cp_time=>time_zone->user )->as( xco_cp_time=>format->iso_8601_extended )->value. "Getting second, minute, hour information "e.g. 59 DATA(m9_seconds) = xco_cp=>sy->time( xco_cp_time=>time_zone->user )->second. "e.g. 27 DATA(m10_minutes) = xco_cp=>sy->time( xco_cp_time=>time_zone->user )->minute. "e.g. 10 DATA(m11_hours) = xco_cp=>sy->time( xco_cp_time=>time_zone->user )->hour. "Calculations with time "Adding "e.g. 11:29:00 DATA(m12_add_time) = xco_cp=>sy->time( xco_cp_time=>time_zone->user )->add( iv_hour = 1 iv_minute = 1 iv_second = 1 )->as( xco_cp_time=>format->iso_8601_extended )->value. "Subtracting "e.g. 09:26:58 DATA(m13_subtract_time) = xco_cp=>sy->time( xco_cp_time=>time_zone->user )->subtract( iv_hour = 1 iv_minute = 1 iv_second = 1 )->as( xco_cp_time=>format->iso_8601_extended )->value. "Getting date information "e.g. 2024-01-01 DATA(m14_date) = xco_cp=>sy->date( )->as( xco_cp_time=>format->iso_8601_extended )->value. "e.g. 01 DATA(m15_day) = xco_cp=>sy->date( )->day. "e.g. 01 DATA(m16_month) = xco_cp=>sy->date( )->month. "e.g. 2024 DATA(m17_year) = xco_cp=>sy->date( )->year. "Calculations with dates "Adding "e.g. 2025-02-02 DATA(m18_add_date) = xco_cp=>sy->date( )->add( iv_day = 1 iv_month = 1 iv_year = 1 )->as( xco_cp_time=>format->iso_8601_extended )->value. "Subtracting "e.g. 2022-12-31 DATA(m19_subtract_date) = xco_cp=>sy->date( )->subtract( iv_day = 1 iv_month = 1 iv_year = 1 )->as( xco_cp_time=>format->iso_8601_extended )->value.

⬆️ back to top

Runtime Type Services (RTTS)

Class

Details/Code Snippet

CL_ABAP_TYPEDESCR

RTTS represent a hierarchy of type description classes containing methods for: getting type information on data objects, data types or instances at runtime (Runtime Type Identification (RTTI)). defining and creating new data types as type description objects at runtime (Runtime Type Creation (RTTC)). Apart from CL_ABAP_TYPEDESCR, there are the following classes available. The list shows the hierarchy of type description classes. The example shows a small selection. See also the dynamic programming cheat sheet. CL_ABAP_TYPEDESCR | |--CL_ABAP_DATADESCR | | | |--CL_ABAP_ELEMDESCR | | | | | |--CL_ABAP_ENUMDESCR | | | |--CL_ABAP_REFDESCR | |--CL_ABAP_COMPLEXDESCR | | | |--CL_ABAP_STRUCTDESCR | |--CL_ABAP_TABLEDESCR | |--CL_ABAP_OBJECTDESCR | |--CL_ABAP_CLASSDESCR |--CL_ABAP_INTFDESCR TYPES elem_type TYPE c LENGTH 5. DATA(tdo_elem) = CAST cl_abap_elemdescr( cl_abap_typedescr=>describe_by_name( 'ELEM_TYPE' ) ). DATA(rel_name) = tdo_elem->get_relative_name( ). TYPES reftype TYPE REF TO string. DATA(dref) = NEW i( 123 ). DATA(type_descr1) = cl_abap_typedescr=>describe_by_data_ref( dref ). DATA(tdo_ref) = CAST cl_abap_refdescr( cl_abap_typedescr=>describe_by_name( 'REFTYPE' ) ). DATA(type_descr2) = tdo_ref->get_referenced_type( ). DATA structure TYPE zdemo_abap_carr. DATA(tdo_struc) = CAST cl_abap_structdescr( cl_abap_typedescr=>describe_by_data( structure ) ). DATA(abs_name) = tdo_struc->absolute_name. DATA(struc_components) = tdo_struc->get_components( ). DATA itab TYPE SORTED TABLE OF zdemo_abap_carr WITH UNIQUE KEY carrid. DATA(tdo_itab) = CAST cl_abap_tabledescr( cl_abap_typedescr=>describe_by_data( itab ) ). DATA(keys) = tdo_itab->get_keys( ). DATA(tab_components) = CAST cl_abap_structdescr( tdo_itab->get_table_line_type( ) )->components. DATA(tdo_oref) = CAST cl_abap_classdescr( cl_abap_typedescr=>describe_by_name( 'CL_ABAP_CLASSDESCR' ) ). DATA(cl_methods) = tdo_oref->methods. DATA(cl_attr) = tdo_oref->attributes. DATA(tdo_iref) = CAST cl_abap_intfdescr( cl_abap_typedescr=>describe_by_name( 'ZDEMO_ABAP_OBJECTS_INTERFACE' ) ). DATA(intf_methods) = tdo_iref->methods. DATA(intf_attr) = tdo_iref->attributes.

⬆️ back to top

Assignments

Class

Details/Code Snippet

CL_ABAP_CORRESPONDING

For assignments of components between structures or between internal tables with dynamically specified mapping rules. For more information, you can refer to the ABAP Keyword Documentation. The example shows simple assignments with structures. DATA: BEGIN OF s1, a TYPE i, b TYPE c LENGTH 3, c TYPE c LENGTH 5, END OF s1. DATA: BEGIN OF s2, a TYPE i, b TYPE c LENGTH 3, d TYPE string, END OF s2. "Populating structures s1 = VALUE #( a = 1 b = 'aaa' c = 'bbbbb' ). s2 = VALUE #( a = 2 b = 'ccc' d = `dddd` ). DATA(s3) = s1. DATA(s4) = s2. "Creating a mapping object "An initial mapping table means that only identically named components are assigned. "Other components retain their original values, i.e. the assignment for structures "works like MOVE-CORRESPONDING or the CORRESPONDING operator with the BASE addition DATA(map_obj) = cl_abap_corresponding=>create( source = s1 destination = s2 mapping = VALUE #( ) ). "Performing the assignement map_obj->execute( EXPORTING source = s1 CHANGING destination = s2 ). *s2 *A B D *1 aaa dddd "Performing the assignement without extra variable; specifying the mapping table: "level: 0 means the top level "kind: 1 means that components specified in this line are mapped to each other; " see the specification options in cl_abap_corresponding=>mapping_... "srcname/dstname: source component/target component cl_abap_corresponding=>create( source = s3 destination = s4 mapping = VALUE #( ( level = 0 kind = 1 srcname = 'c' dstname = 'd' ) ) )->execute( EXPORTING source = s3 CHANGING destination = s4 ). *s4 *A B D *1 aaa bbbbb

⬆️ back to top

Dynamic Programming

Class

Details/Code Snippet

CL_ABAP_DYN_PRG

For validating input for dynamic specifications. "The following method checks database table names. The name is provided "with the val parameter. The packages formal parameter expects a table "containing the names of packages in which the specified table should be "included. Assuming you provide incorrect input for the table name, or "the table is not contained in the specified packages, you can expect an "exception to be raised. TRY. DATA(dbtab) = cl_abap_dyn_prg=>check_table_name_tab( val = `ZDEMO_ABAP_FLI` packages = VALUE #( ( `TEST_ABAP_CHEAT_SHEETS` ) ( `TEST_SOME_PACK` ) ) ). SELECT SINGLE * FROM (dbtab) INTO NEW @DATA(ref_wa). CATCH cx_abap_not_a_table cx_abap_not_in_package. ... ENDTRY. "In the following examples, a method is used to check whether "the input is allowed or not. For this, you specify an allowlist. "Here, the relvant parameter expects a comma-separated list of "allowed values. TRY. DATA(value1) = cl_abap_dyn_prg=>check_allowlist( val = `A` allowlist_str = `A,B,C,D` ). ... "Here might go an ABAP SQL statement with a dynamic specification. CATCH cx_abap_not_in_allowlist. ... ENDTRY. "Another parameter of the method expects an internal table that "contains the allowed values. TRY. DATA(value2) = cl_abap_dyn_prg=>check_allowlist( val = `XYZ` allowlist_htab = VALUE #( ( `A` ) ( `B` ) ( `C` ) ( `D` ) ) ). ... "Here might go an ABAP SQL statement with a dynamic specification. CATCH cx_abap_not_in_allowlist. ... ENDTRY.

⬆️ back to top

Context Information

Class

Details/Code Snippet

CL_ABAP_CONTEXT_INFO

Provides context information relevant to the current ABAP session. "Getting UTC date, e.g. 20240101 DATA(sys_date) = cl_abap_context_info=>get_system_date( ). "Getting current time in UTC, e.g. 152450 DATA(sys_time) = cl_abap_context_info=>get_system_time( ). "User alias, e.g. XY0000001234 DATA(alias) = cl_abap_context_info=>get_user_alias( ). "You can also get user information using XCO classes DATA(user_w_xco) = xco_cp=>sy->user( )->name. "Formatted name, e.g. John Doe TRY. DATA(formatted_name) = cl_abap_context_info=>get_user_formatted_name( ). CATCH cx_abap_context_info_error. ENDTRY.

⬆️ back to top

XML/JSON

Class	Details
CL_IXML_* CL_SXML_*	The processing of XML can be done using class libraries such as the Integrated XML Library (iXML) and the Serial XML Library (sXML). In iXML, you need input and output streams that are created using iXML methods to access XML data. sXML provides XML readers and writers for different sources and targets to process XML data sequentially. JSON can also be handled. For more information and code snippets, you can refer to the ABAP Keyword Documentation and the XML/JSON cheat sheet. "As mentioned, refer to the ABAP Keyword Documentation and the "XML/JSON cheat sheet (and executable example) for examples "Creating an XML writer using sXML DATA(writer) = CAST if_sxml_writer( cl_sxml_string_writer=>create( type = if_sxml=>co_xt_xml10 encoding = 'UTF-8' ) ). "The above writer uses a cast to if_sxml_writer. In doing so, "more special methods can be accessed. You can check it by adding "the object component selector (->) behind the closing parenthesis. "Plus: The example above specifies the default parameters "explicitly. Here, they are omitted. You can also create a JSON "writer. DATA(writer2) = cl_sxml_string_writer=>create( ). ... "Creating some XML data "Creating an XML reader using sXML "Note: Similar to the writer, the interface IF_SXML_READER exists "for readers. DATA(reader) = cl_sxml_string_reader=>create( some_xml ). ... "Reading XML data sequentially
XCO_XP_JSON	Handling JSON data using the XCO library "Creating and populating a demo structure and internal table DATA: BEGIN OF carrier_struc, carrier_id TYPE c length 3, connection_id TYPE n length 4, city_from TYPE c length 20, city_to TYPE c length 20, END OF carrier_struc. DATA carriers_tab LIKE TABLE OF carrier_struc WITH EMPTY KEY. carrier_struc = VALUE #( carrier_id = 'AA' connection_id = '17' city_from = 'New York' city_to = 'San Francisco' ). carriers_tab = VALUE #( ( carrier_id = 'AZ' connection_id = '788' city_from = 'Rome' city_to = 'Tokyo' ) ( carrier_id = 'JL' connection_id = '408' city_from = 'Frankfurt' city_to = 'Tokyo' ) ). "ABAP (structure) -> JSON using XCO DATA(struc2json_xco) = xco_cp_json=>data->from_abap( carrier_struc )->to_string( ). "Result: {"CARRIER_ID":"AA","CONNECTION_ID":"0017","CITY_FROM":"New York","CITY_TO":"San Francisco"} "ABAP (internal table) -> JSON using XCO DATA(itab2json_xco) = xco_cp_json=>data->from_abap( carriers_tab )->to_string( ). "Result: [{"CARRIER_ID":"AZ","CONNECTION_ID":"0788","CITY_FROM":"Rome","CITY_TO":"Tokyo"}, " {"CARRIER_ID":"JL","CONNECTION_ID":"0408","CITY_FROM":"Frankfurt","CITY_TO":"Tokyo"}] "JSON -> ABAP (structure) using XCO DATA json2struc_xco LIKE carrier_struc. xco_cp_json=>data->from_string( struc2json_xco )->write_to( REF #( json2struc_xco ) ). "Result: "CARRIER_ID CONNECTION_ID CITY_FROM CITY_TO "AA 0017 New York San Francisco "JSON -> ABAP (internal table) using XCO DATA json2itab_xco LIKE carriers_tab. xco_cp_json=>data->from_string( itab2json_xco )->write_to( REF #( json2itab_xco ) ). "Result: "CARRIER_ID CONNECTION_ID CITY_FROM CITY_TO "AZ 0788 Rome Tokyo "JL 0408 Frankfurt Tokyo "Creating JSON using XCO "You can check out more methods that offer various options to build "the JSON by clicking CTRL + Space after '->' in ADT. "In the following example, JSON data similar to above is created. "First, a JSON data builder is created. Then, using different methods, "JSON data is created. DATA(json_builder_xco) = xco_cp_json=>data->builder( ). json_builder_xco->begin_object( )->add_member( 'CarrierId' )->add_string( 'DL' )->add_member( 'ConnectionId' )->add_string( '1984' )->add_member( 'CityFrom' )->add_string( 'San Francisco' )->add_member( 'CityTo' )->add_string( 'New York' )->end_object( ). "Getting JSON data DATA(json_created_xco) = json_builder_xco->get_data( )->to_string( ). "Result: {"CarrierId":"DL","ConnectionId":"1984","CityFrom":"San Francisco","CityTo":"New York"} "Transforming the created JSON to ABAP (structure) "Note: The JSON was intentionally created without the underscores in the "name to demonstrate the 'apply' method. The following example demonstrates "a transformation of camel case and underscore notation. As above, check out "more options by clicking CTRL + Space after '...transformation->'. CLEAR json2struc_xco. xco_cp_json=>data->from_string( json_created_xco )->apply( VALUE #( ( xco_cp_json=>transformation->pascal_case_to_underscore ) ) )->write_to( REF #( json2struc_xco ) ). "Result "CARRIER_ID CONNECTION_ID CITY_FROM CITY_TO "DL 1984 San Francisco New York

⬆️ back to top

ABAP Repository Information

Class

Details/Code Snippet

XCO_CP_ABAP_REPOSITORY

Provides access to abstractions for ABAP Dictionary objects such as database tables, data elements, types and more. For more detailed examples, refer to the SAP Help Portal. See also the executable example of the ABAP for Cloud Development cheat sheet. The code snippet contains a small selection and only hints at the many ways to retrieve different pieces of information that the classes provide. The snippet does not only include the XCO_CP_ABAP_REPOSITORY class but also others such as XCO_CP_ABAP, XCO_CP_ABAP_SQL, and XCO_CP_CDS. More XCO classes are available in that context. "Getting all accessible repository objects in the system "To further process the returned values, you can loop over them. DATA(all_obj) = xco_cp_abap_repository=>objects->all->in( xco_cp_abap=>repository )->get( ). "Gettig all database tables DATA(all_tables) = xco_cp_abap_repository=>objects->tabl->all->in( xco_cp_abap=>repository )->get( ). "Refining the search by applying a filter "Creating a filter and adding a search pattern DATA(filter1) = xco_cp_abap_repository=>object_name->get_filter( xco_cp_abap_sql=>constraint->contains_pattern( 'ZDEMO_ABAP_RAP_R%' ) ). "Getting all BDEFs in the system having a specific pattern DATA(bdefs_in_package) = xco_cp_abap_repository=>objects->bdef->where( VALUE #( ( filter1 ) ) )->in( xco_cp_abap=>repository )->get( ). "Getting all accessible interfaces with a particular name pattern in the entire system DATA(filter2) = xco_cp_abap_repository=>object_name->get_filter( xco_cp_abap_sql=>constraint->contains_pattern( 'IF_ABAP_BEHV%' ) ). DATA(all_intfs) = xco_cp_abap_repository=>objects->intf->where( VALUE #( ( filter2 ) ) )->in( xco_cp_abap=>repository )->get( ). "Getting all classes in the system that correspond to a specific name pattern and "that are contained in a specific software component "Creating filters DATA(filter3) = xco_cp_system=>software_component->get_filter( xco_cp_abap_sql=>constraint->equal( 'SAP_BASIS' ) ). DATA(filter4) = xco_cp_abap_repository=>object_name->get_filter( xco_cp_abap_sql=>constraint->contains_pattern( '%CL_ABAP_RAND%' ) ). DATA(filtered_classes) = xco_cp_abap_repository=>objects->clas->where( VALUE #( ( filter3 ) ( filter4 ) ) )->in( xco_cp_abap=>repository )->get( ). "Getting information about some of the technical properties of different "repository objects. The examples show the creation of handlers. You can "explore more options, e.g., by adding the object component selector (->) "to the final parenthesis and checking the suggestions by ADT. "Database table DATA(handler_tabl) = xco_cp_abap_dictionary=>database_table( 'ZDEMO_ABAP_CARR' ). "Data element DATA(handler_dtel) = xco_cp_abap_dictionary=>data_element( 'MANDT' ). "Table type DATA(handler_table_type) = xco_cp_abap_dictionary=>table_type( 'STRING_TABLE' ). "CDS view entity DATA(handler_cds_ve) = xco_cp_cds=>view_entity( 'ZDEMO_ABAP_RAP_RO_M' ). "Interface DATA(handler_intf) = xco_cp_abap=>interface( 'ZDEMO_ABAP_OBJECTS_INTERFACE' ). "Getting information about where the interface is implemented DATA(where_is_intf_impl) = handler_intf->implementations->all->get_names( ). "Class DATA(handler_cl) = xco_cp_abap=>class( 'ZCL_DEMO_ABAP_UNIT_TEST' ). "Getting subclasses DATA(subcl) = xco_cp_abap=>class( 'CL_ABAP_TYPEDESCR' )->subclasses->all->get( ). "Getting the names of the subclasses DATA(subcl_names) = xco_cp_abap=>class( 'CL_ABAP_TYPEDESCR' )->subclasses->all->get_names( ). "Taking an XCO handler for a database table as an example, see some of the "details you can retrieve. The method names should be self-explanatory. DATA(dbtab_name) = handler_tabl->name. DATA(dbtab_descr) = handler_tabl->content( )->get_short_description( ). DATA(dbtab_del_cl) = handler_tabl->content( )->get_delivery_class( )->value. DATA(dbtab_field_names) = handler_tabl->fields->all->get_names( ). DATA(dbtab_keys) = handler_tabl->fields->key->get_names( ). DATA(dbtab_vis) = handler_tabl->get_api_state( )->get_visibilities( ). "Initial for the cheat sheet table DATA(dbtab_rel_state) = handler_tabl->get_api_state( )->get_release_state( )->value.

⬆️ back to top

Call Stack

Class

Details/Code Snippet

XCO_CP XCO_CP_CALL_STACK

Getting the current ABAP call stack programmatically. See more information here. "Getting the full current call stack DATA(call_stack) = xco_cp=>current->call_stack->full( ). "Creating a format for the call stack "In the example, an ADT debugger-like style is used Data(format) = xco_cp_call_stack=>format->adt( )->with_line_number_flavor( xco_cp_call_stack=>line_number_flavor->source ). "Retrieving the full call stack as text, e.g. so that it can be output "or written somewhere DATA(call_stack_as_text) = call_stack->as_text( format ). "Extracting the call stack based on specifications "You can specify the extractions using from/to and "further detailing out the kinds of extractions "such as the position or the first/last occurrence "of a specific line pattern. "In the example, a line pattern is created (method that "starts with a specific pattern). The extracting should "go up to the last occurrence of this pattern. It is "started at position 1. DATA(line_pattern) = xco_cp_call_stack=>line_pattern->method( )->where_class_name_starts_with( 'CL_REST' ). DATA(extracted_call_stack_as_text) = call_stack->from->position( 1 )->to->last_occurrence_of( line_pattern )->as_text( format ).

⬆️ back to top

Sending Emails

Class

Details/Code Snippet

CL_BCS_MAIL_MESSAGE

For sending emails, a configuration is required. Find more information here. Note that you can also send emails asynchronously using the method send_async. TRY. DATA(mail) = cl_bcs_mail_message=>create_instance( ). mail->set_sender( '...@...' ). mail->add_recipient( '...@...' ). mail->set_subject( 'Test Mail' ). mail->set_main( cl_bcs_mail_textpart=>create_instance( iv_content = '<h1>Hello</h1><p>This is a test mail.</p>' iv_content_type = 'text/html' ) ). mail->send( IMPORTING et_status = DATA(status_table) ). "You can check the status of the email sending in the returned table. "'status' components: E (error), S (sent), W (waiting) CATCH cx_bcs_mail INTO DATA(error_mail). ... ENDTRY.

⬆️ back to top

Tenant Information

Class

Details/Code Snippet

XCO_CP XCO_CP_TENANT

For obtaining various information about the currently active tenant. "Getting a handler for the currently active tenant DATA(ten) = xco_cp=>current->tenant( ). "Getting the UI URL of the currently active tenant DATA(ui_url) = ten->get_url( xco_cp_tenant=>url_type->ui ). "Protocol "e.g. https DATA(prot) = ui_url->get_protocol( ). "Host and domain "e.g. abcde-...-com DATA(host) = ui_url->get_host( ). "Port "e.g. 443 DATA(port) = ui_url->get_port( ). "Global account ID DATA(ui_urdld) = ten->get_global_account_id( )->as_string( ). "Guid DATA(udld) = ten->get_guid( )->value. "Id DATA(uddld) = ten->get_id( ). "Subaccount ID DATA(uddsdld) = ten->get_subaccount_id( )->as_string( ).

⬆️ back to top

Exception Classes

Class

Details/Code Snippet

CX_*

Exception classes are special classes, usually starting with the name CX_*, that serve as the basis for catchable exceptions. When an exception is raised, an object of such an exception class is created. There are several predefined exception classes. Find more information in the cheat sheet about program flow logic. TRY. DATA(res) = 1 / 0. CATCH cx_sy_zerodivide. ENDTRY. DATA(str_table) = VALUE string_table( ( `a` ) ( `b` ) ( `c` ) ). TRY. DATA(table_entry) = str_table[ 4 ]. CATCH cx_sy_itab_line_not_found. ENDTRY.

⬆️ back to top

Parallel Processing

Class

Details/Code Snippet

CL_ABAP_PARALLEL

For performing the parallel processing for instances of ABAP Objects. The following example class is intended to be a self-contained example that tries to visualize the functionality of the CL_ABAP_PARALLEL class. For more information, refer to the class documentation. CLASS zcl_some_class DEFINITION PUBLIC FINAL CREATE PUBLIC . PUBLIC SECTION. INTERFACES if_oo_adt_classrun. INTERFACES if_abap_parallel. METHODS: constructor. PRIVATE SECTION. "This table holds entries that are added when "calling the 'do' method. DATA info_parallel_proc TYPE string_table. "Data types and objects for the data cluster "that contains information to be output CLASS-DATA buffer TYPE xstring. DATA obj TYPE string. DATA parallel_log TYPE string_table. DATA inst_name TYPE string. "Structure to hold information for the output DATA: BEGIN OF info, name TYPE string, tmstmp TYPE utclong, END OF info. "Preparing the data cluster METHODS handle_cluster IMPORTING name TYPE string. ENDCLASS. CLASS zcl_some_class IMPLEMENTATION. METHOD if_oo_adt_classrun~main. "This is a self-contained example class trying to visualize the "functionality of the cl_abap_parallel class. "As a prerequisite, you have a class that implements the interface "IF_ABAP_PARALLEL. In the self-contained example, it is this class "itself that implements it. "When running the class with F9, the following code is executed. "Creating an instance of class cl_abap_parallel DATA(parallel) = NEW cl_abap_parallel( ). "Creating instances of this example class for demonstration "purposes. The handle_cluster method is used to manually "provide the name of the object reference variable for "output purposes. handle_cluster( `inst1` ). DATA(inst1) = NEW zcl_some_class( ). handle_cluster( `inst2` ). DATA(inst2) = NEW zcl_some_class( ). handle_cluster( `inst3` ). DATA(inst3) = NEW zcl_some_class( ). handle_cluster( `inst4` ). DATA(inst4) = NEW zcl_some_class( ). WAIT UP TO 1 SECONDS. "Starting the parallel processing for objects with the 'run_inst' method. "As input parameters, instances of the classes to be processed are expected. "The importing parameter is an internal table. It contains result information "for the tasks that were processed in parallel. parallel->run_inst( EXPORTING p_in_tab = VALUE #( ( inst1 ) ( inst2 ) ( inst3 ) ( inst4 ) ) IMPORTING p_out_tab = DATA(result_info) ). WAIT UP TO 1 SECONDS. LOOP AT result_info INTO DATA(wa). "For accessing the details, a cast to the respective class is required (in this "case, it is this very class). DATA(res) = CAST zcl_some_class( wa-inst ). "Adding information to a string table that is output APPEND |**** Instance "{ res->info-name }" created at { res->info-tmstmp } ****| TO parallel_log. LOOP AT res->info_parallel_proc INTO DATA(wap). APPEND |{ wap }| TO parallel_log. ENDLOOP. APPEND `-----------------------------------------------------------------` TO parallel_log. ENDLOOP. out->write( parallel_log ). ENDMETHOD. METHOD if_abap_parallel~do. "The following code is executed in parallel. "In the simplified example, some text is added to a string table that "is output later on. It includes a time stamp to compare the different "outputs. DO 3 TIMES. APPEND |This text was added at { utclong_current( ) }| TO info_parallel_proc. ENDDO. ENDMETHOD. METHOD constructor. "The purpose of the implementation in the instance constructor "is to pass the manually added name of the object reference "variable for output purposes. "A data cluster is used to have a self-contained example class "that can be run with F9. TRY. IMPORT str = inst_name FROM DATA BUFFER buffer. CATCH cx_sy_import_format_error INTO DATA(error). ENDTRY. IF error IS INITIAL. "The information provided here is used for output purposes. "The name of the object reference variable is "expected to be the only input in the table, as well as "a time stamp to compare with other time stamps that are "output. info = VALUE #( name = inst_name tmstmp = utclong_current( ) ). ENDIF. ENDMETHOD. METHOD handle_cluster. "This method is used to prepare the data cluster and "pass the name of the object reference variable that "was added manually via the input parameter 'name'. CLEAR buffer. obj = name. EXPORT str = obj TO DATA BUFFER buffer. ENDMETHOD. ENDCLASS.

⬆️ back to top

Application Log

Class

Details/Code Snippet

CL_BALI_LOG

For creating and reading application logs. Refer to this documentation for more information and code snippets. "Demo application job (sub)objects and external ID "Note: "- Refer to the documentation about how to create an application log object in ADT, " and for more options the classes offer in the context of application logs. "- Required authorization for authorization object: S_APPL_LOG. CONSTANTS: obj TYPE cl_bali_header_setter=>ty_object VALUE 'DEMO_LOG', subobj TYPE cl_bali_header_setter=>ty_subobject VALUE 'DEMO_SUB', external_id TYPE cl_bali_header_setter=>ty_external_id VALUE 'DEMO_EXT_ID'. "---- Creating (and deleting) application log entries ---- TRY. "Creating an instance of the application Log class DATA(appl_log) = cl_bali_log=>create( ). "Setting the header log, using application log object descriptions appl_log->set_header( header = cl_bali_header_setter=>create( object = obj subobject = subobj external_id = external_id ) ). "Before creating new application log entries, deleting existing ones based on the application "log object information and the user DATA(filter4del) = cl_bali_log_filter=>create( ). filter4del->set_create_info( user = xco_cp=>sy->user( )->name )->set_descriptor( object = obj subobject = subobj external_id = external_id ). "Reading the logs from the database by applying the filter DATA(del_appl_log) = cl_bali_log_db=>get_instance( )->load_logs_w_items_via_filter( filter = filter4del ). "Deleting existing application log entries that are retrieved based on the applied filter LOOP AT del_appl_log INTO DATA(log_del). cl_bali_log_db=>get_instance( )->delete_log( log = log_del ). ENDLOOP. "Creating new application log entries "Creating a free text and adding it to the application log DATA(free_txt) = cl_bali_free_text_setter=>create( severity = if_bali_constants=>c_category_free_text text = |This text is added to the application log at { utclong_current( ) }| ). appl_log->add_item( item = free_txt ). "Creating an exception and adding it to the application log DATA(strtab) = VALUE string_table( ( `a` ) ( `b` ) ( `c` ) ). TRY. DATA(line) = strtab[ 4 ]. CATCH cx_sy_itab_line_not_found INTO DATA(error). ENDTRY. DATA(exc) = cl_bali_exception_setter=>create( severity = if_bali_constants=>c_category_exception exception = error ). appl_log->add_item( item = exc ). "Saving the application log to the database cl_bali_log_db=>get_instance( )->save_log( log = appl_log ). CATCH cx_bali_runtime. ENDTRY. WAIT UP TO 1 SECONDS. "---- Reading the application log ---- TRY. "Creating a filter "Only the messages from the current user based on the application log "object information and in the time frame now - 1 hour are retrieved. DATA(filter) = cl_bali_log_filter=>create( ). DATA(now) = utclong_current( ). DATA(anhourearlier) = utclong_add( val = now hours = '1-' ). filter->set_create_info( user = xco_cp=>sy->user( )->name )->set_descriptor( object = obj subobject = subobj external_id = external_id )->set_time_interval( start_time = anhourearlier end_time = now ). "Reading the logs from the database by applying the filter DATA(log_table) = cl_bali_log_db=>get_instance( )->load_logs_w_items_via_filter( filter = filter ). "Processing the read result LOOP AT log_table INTO DATA(log). "Retrieving all items DATA(items) = log->get_all_items( ). "Retrieving the application log messages (and displaying) LOOP AT items INTO DATA(item). DATA(log_item_number) = item-log_item_number. DATA(msg) = item-item->get_message_text( ). "Displaying the entries when running a class "that implements the if_oo_adt_classrun interface "out->write( |{ log_item_number } { msg }| ). ENDLOOP. ENDLOOP. CATCH cx_bali_runtime. ENDTRY.

⬆️ back to top
